EZEBEND Tube Bender

Model 5000Model 5000Model 5000

Bender Features


The EZEBEND™ Tube Bender Model 5000 - Semi-Automatic bending control with remote electric foot pedals and manually operated double ended expanding, reducing and forming swage box.

    This is a full-size tube bender with end forming. This unit (Model 5000 )is equipped with Semi-Automatic operation on the tube bending side and comes with a standard, single phase, 208-230 V AC, 5.0 hp motor, that is set-up for 125/250 V AC input power supply. The Semi-Automatic feature allows the operator to preset the bending angle and once the bending angle is reached, the unit will automatically return to the start position, ready for the next bend.

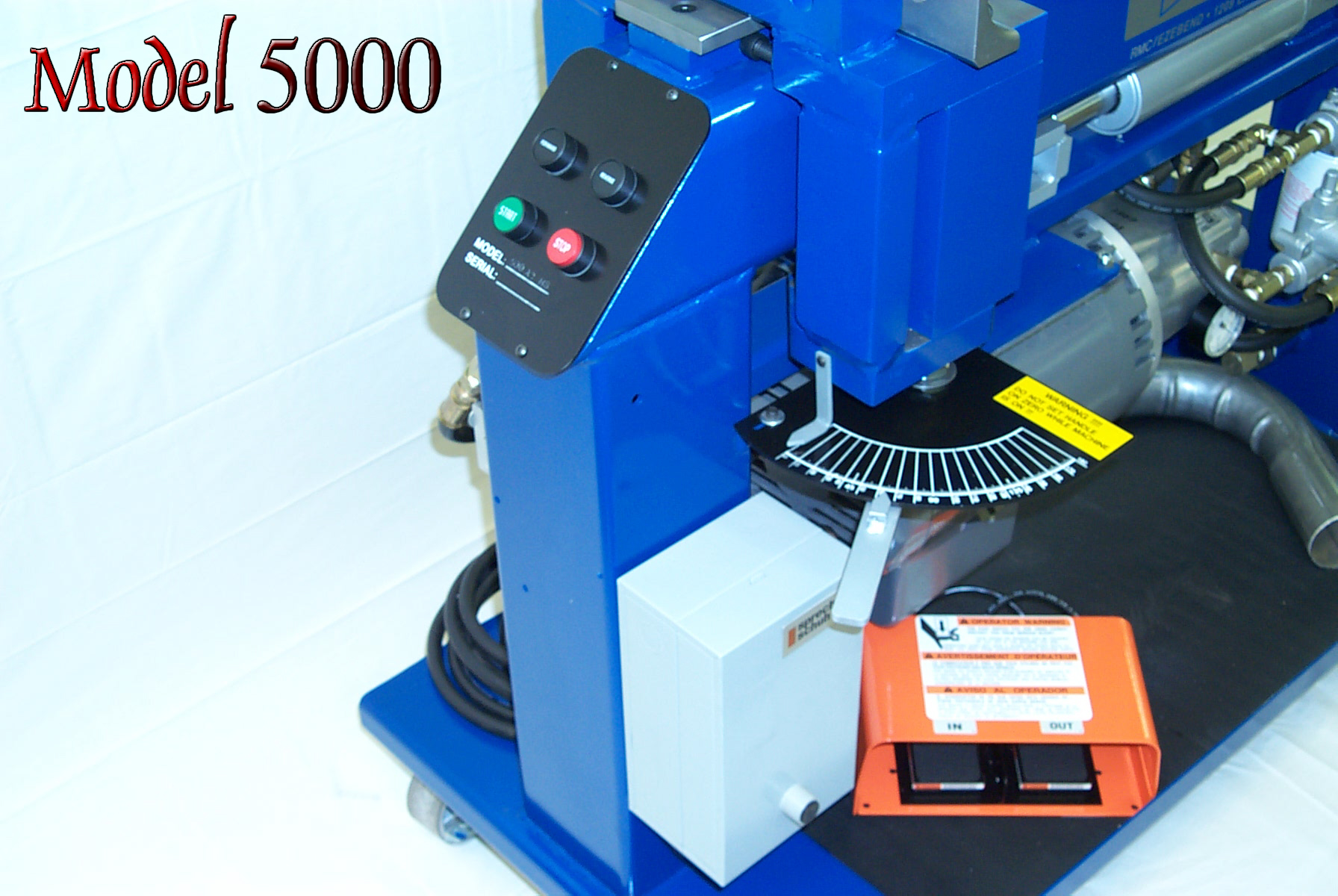

    This unit also includes remote electric foot pedal controls, to help the operator preset and stabilize the tube prior to engaging the Semi-Automatic feature. Use the foot petals to bring the ram die forward to put a small amount of pressure on the tube prior to starting the Semi-Automatic operation or use the foot petals to bend to the preset angle and when that angle is reached, the unit will automatically return to the start position. The Semi-Automatic feature really helps produce fast, repeatable bends. This units include a set of our standard
Muffler Man Package Bending Dies (Item # 810-100) or upgrade to our Muffler Man Deluxe Bending Die Package (Item # 810-200) which includes a complete set of 3" bending and forming dies.

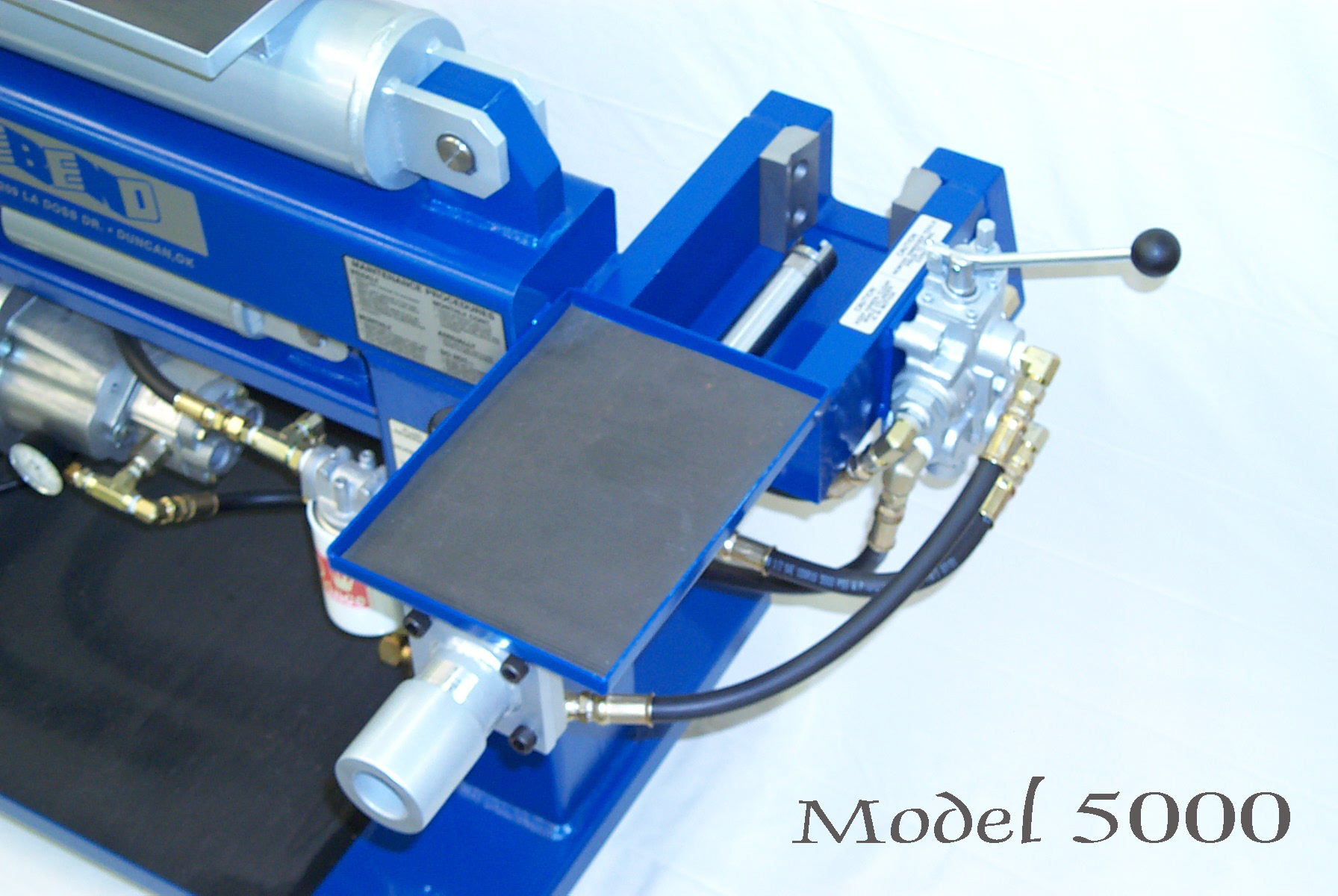

    The double-ended swage box cylinder expands / reduces and forms the ends of the tube for quick, easy installations. Along with the included quick change tooling, this unit will allow you to start bending almost immediately. Just roll the unit to its spot, lock the wheel and plug in the unit, select the die to match the tube and start bending.

   The 25-ton working force, welded hydraulic top cylinder is mounted to our standard, heavy-duty, ½'' thick wall tube, which is thicker than our competitor's benders. This thicker walled tube provides greater rigidity during each bending cycle, which results in a more accurate bend. These bends are made with dies that are machined out of steel, heat treat and hardened to prevent wear and give the dies a very long working life. These are just a few of the many examples of the quality components that we are proud to incorporate into the products that we offer.

    Model 5000 HS/XC - Also available is a High Speed/Extra Capacity Bender with Semi-Automatic operation which is equipped with a larger single phase, 208-230 V AC, 7.5 hp motor, and set-up for 125/250 V AC input power supply. This larger motor and hydraulic set-up allows for the smooth bending of heavier gauge metal
without having to maximize your system's working pressure. (When you increase the system pressures, you increase the possibilities of leaks and system failures.) If you are working with a lot of 3" exhaust tube, this heavier-duty unit would be great for you. This units include a set of our standard
Muffler Man Package Bending Dies (Item # 810-100) or upgrade to our Muffler Man Deluxe Bending Die Package (Item # 810-200) which includes a complete set of 3" bending and forming dies.
